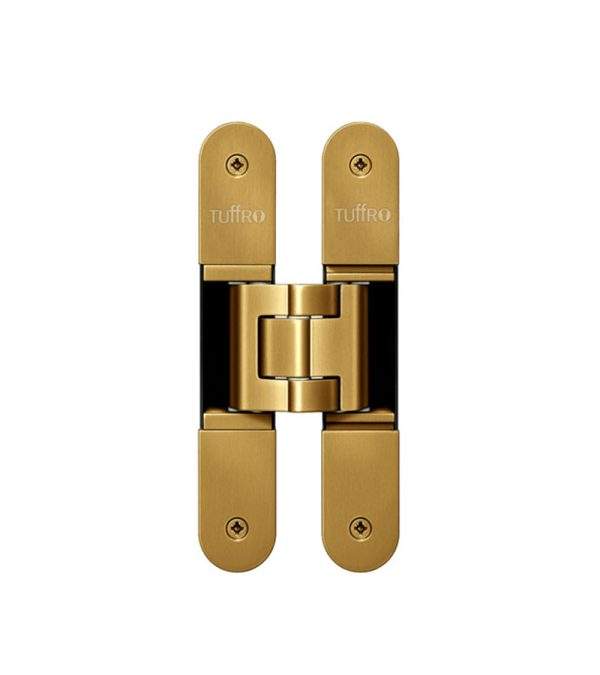

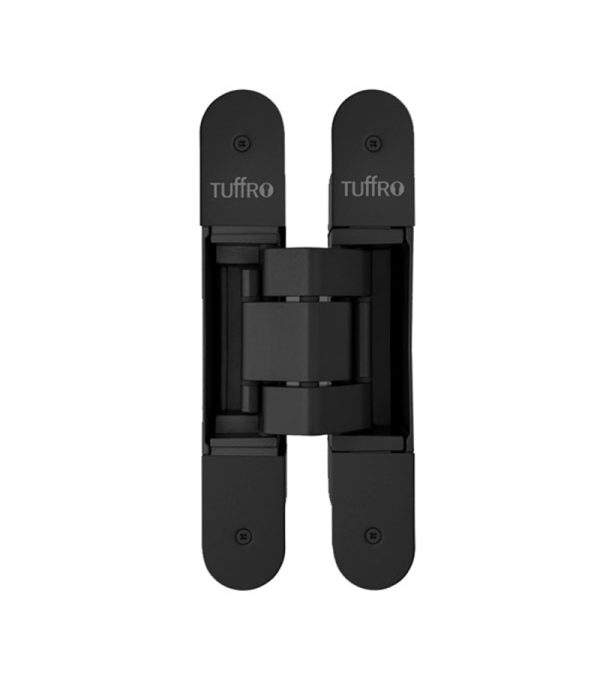

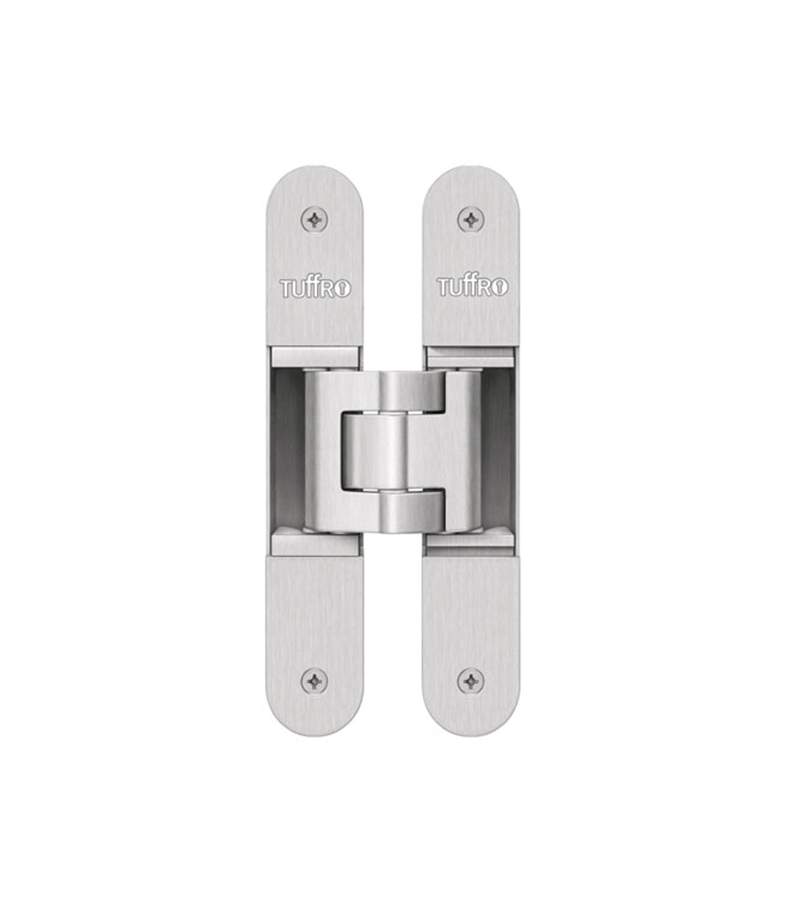

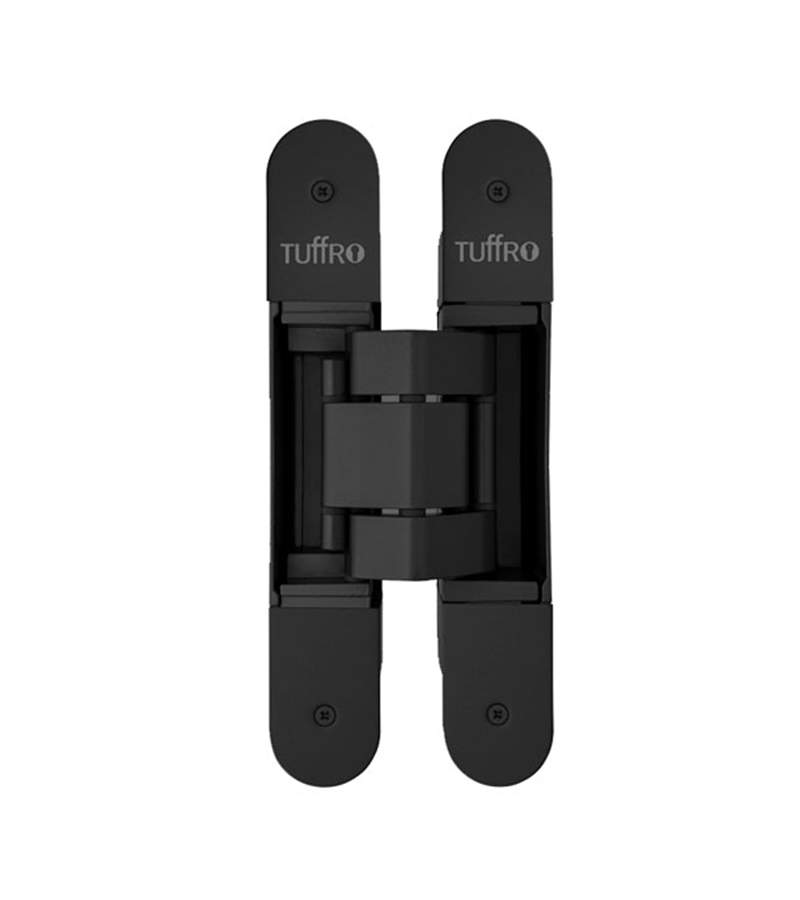

The TFCH008 Concealed Hinges from TUFFRO UK LTD are designed to deliver exceptional performance while maintaining a clean, seamless appearance. Perfectly engineered for modern architectural and design needs, these hinges are concealed within the door frame, ensuring no visible hardware and providing a sleek, minimalist aesthetic. Crafted from high-quality, corrosion-resistant materials, the TFCH008 hinges offer smooth, reliable operation and long-lasting durability. With their versatile design, these hinges are ideal for residential and commercial applications where precision, style, and functionality are key priorities.
| Product Code | Size | Min. Door Thickness | Max. Door Weight | A Hinge Width | B Hinge Length | C | D Mortise Length | E Dimension From Door Edge | F Mortise Depth | G Plate Depth | Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TF00857 | 25 x 150 | 35mm | 40kg | 25 | 150 | 14 | 121 | 3.5 | 22.5 | 6.5 | Silver |
| TF00864 | 25 x 150 | 35mm | 40kg | 25 | 150 | 14 | 121 | 3.5 | 22.5 | 6.5 | Black |
| TF00871 | 25 x 150 | 35mm | 40kg | 25 | 150 | 14 | 121 | 3.5 | 22.5 | 6.5 | Gold |
| TF00888 | 28 x 117 | 40mm | 80kg | 28 | 177 | 16 | 145 | 3.5 | 25.5 | 9 | Silver |
| TF00895 | 28 x 117 | 40mm | 80kg | 28 | 177 | 16 | 145 | 3.5 | 25.5 | 9 | Black |
| TF00801 | 28 x 117 | 40mm | 80kg | 28 | 177 | 16 | 145 | 3.5 | 25.5 | 9 | Gold |
| TF00818 | 34 x 246 | 45mm | 120kg | 34 | 246 | 18 | 212.5 | 3.5 | 27.5 | 9 | Silver |
| TF00825 | 34 x 246 | 45mm | 120kg | 34 | 246 | 18 | 212.5 | 3.5 | 27.5 | 9 | Black |
| TF00832 | 34 x 246 | 45mm | 120kg | 34 | 246 | 18 | 212.5 | 3.5 | 27.5 | 9 | Gold |
